Do I Really Need to Use Delta?
Recently, and especially with the introduction of the AutoCR tool, a lot of people have been asking questions about Delta conditions and whether they’re really as necessary as people say they are.
Short answer: Yes.

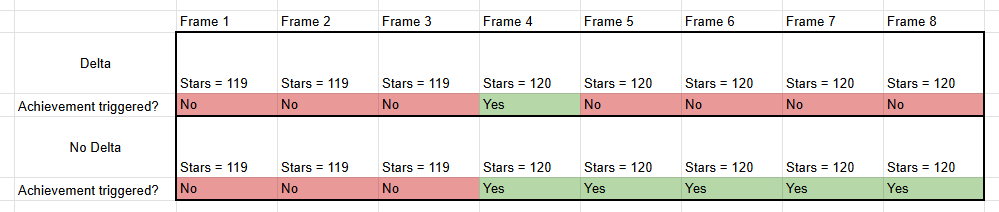

The Delta type is just like the Mem type, except it checks that memory’s value on the previous frame instead of the current one. Its main use is to make sure your achievement conditions weren’t true on the last frame, along with your other conditions that check if they are true now. This is one of the only ways to restrict your logic to a single frame, as depicted below:
Conceptually, you should be thinking about achievement logic as a way to define the moment when your conditions become true. This mindset will help you avoid false triggers and allow you to precisely control your players’ experience.
Practical Reasons for Delta
False Triggers
This is the number one reason that Delta is important. If you take away one thing from this article, let it be this: Restricting your achievements to trigger only on a single frame prevents false triggers in so many cases that it’s always a good idea.
Games have boot sequences, games have flickery or unpredictable memory; it’s very possible and quite common that some of your achievement conditions will become true when you don’t want it to trigger. Those conditions becoming true on the same frame is a lot less likely. If you have an achievement that should pop when you beat a level, restricting it to pop when the level becomes beaten is a huge help when all kinds of other stuff happens in the game’s memory during other parts of the game. It’s impossible to account for all possible situations, but Delta is a big way to mitigate false triggers in unforeseen circumstances.
Save Protection
See also: Save and Password Protection
It’s usually not actually enough to say “are these conditions true now?” to trigger an achievement. Often there are many ways to reach those conditions in a way that shouldn’t trigger the achievement, and loading a save file is one of them. A Delta condition alone may not be sufficient for save protection, since the values in memory are still changing whenever you load a save, but they will often be a part of it.
Even if your game doesn’t have save files or passwords, keep in mind that a lot of people play in Softcore where they can save and load states at any time, and ideally you’ll protect against that as well. So even games that you might not think benefit from this still can!
(Note: If the above paragraph makes you ask, “how could Delta prevent save states from triggering achievements, when those memory addresses would still be changing when you load a state?”, the technical answer is that save states also save the Delta state for conditions that read it, so loading a save state will not activate Delta conditions based on the pre-load state.)
Testing/Development
If you activate or edit an achievement while its conditions are already true, it will be stuck in a “Waiting” state until it becomes false again. In this state, none of the conditions are processed or highlighted, even when it can be beneficial for you to see what’s going on. Rather than having to load an earlier state or back out of an end screen or something to reactivate it, having a Delta that restricts the conditions to a single frame would avoid the issue entirely.
Frequent Concerns
A Delta condition will make my achievement trigger when it’s not supposed to.
You should be adding a Delta condition alongside your conditions that check the memory on the current frame. Since that’s an extra restriction on your achievement conditions, it should never cause extra triggers that wouldn’t happen without it.
A Delta condition will stop my achievement from triggering when I want.
Under normal conditions, your achievement will always fire when its conditions go from being false to true. If you correctly identify which specific condition becomes true at the moment you want it to trigger, adding a Delta check for that condition should not stop it from triggering at that moment.
I don’t know what the previous state will be when my achievement triggers.
That’s okay! A Delta check doesn’t have to check for a specific state. In general, your conditions should be as specific as they can be without preventing triggers you want (that goes for achievement logic in general, not just Delta). Here are some examples:
- I want my achievement to trigger when the player collects 5 thingies. You can only collect one at a time.
Delta 8-bit 0x<thingies> = 0x04
Mem 8-bit 0x<thingies> = 0x05- I want my achievement to trigger when the player kills the boss. There are lots of different weapons that do different amounts of damage.
Delta 8-bit 0x<bosshealth> > 0x00
Mem 8-bit 0x<bosshealth> = 0x00- I want my achievement to trigger when the player enters room 3. There are two entrances to room 3, from room 1 and room 2.
OrNext Delta 8-bit 0x<room> = 0x01
Delta 8-bit 0x<room> = 0x02
Mem 8-bit 0x<room> = 0x03- I want my achievement to trigger when the game state becomes 0xFF, corresponding to “game won”. The game state is complicated and the previous value could be almost any other value.
Delta 8-bit 0x<state> != 0xFF
Mem 8-bit 0x<state> = 0xFFI don’t need Delta because there is no situation where the current frame conditions are true and the achievement shouldn’t trigger.
First of all, this can never be true - see the above paragraph about save protection. Even games that don’t have a save system can be save stated in Softcore.
Even if you think you have the one achievement that doesn’t benefit at all from using Delta - well, even if that were true, adding it couldn’t hurt. It’s important to get into the habit of using it everywhere - it prevents false triggers often enough that it’s always a good decision to add, just in case.
